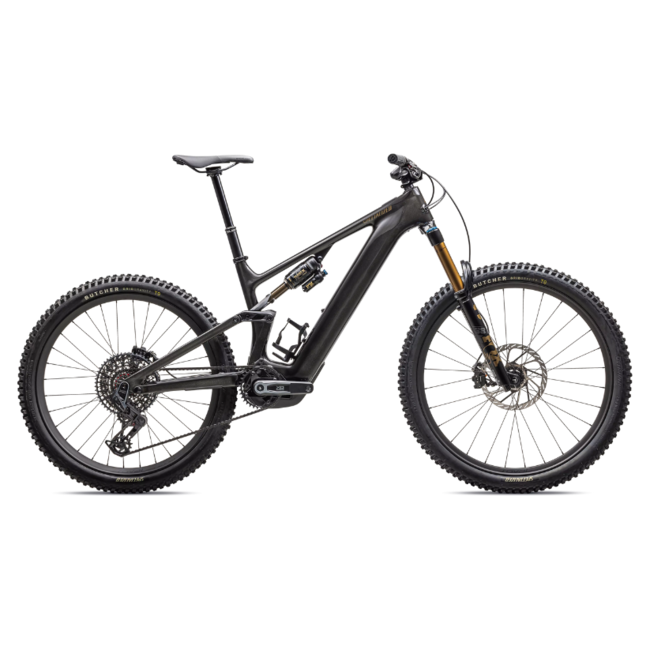

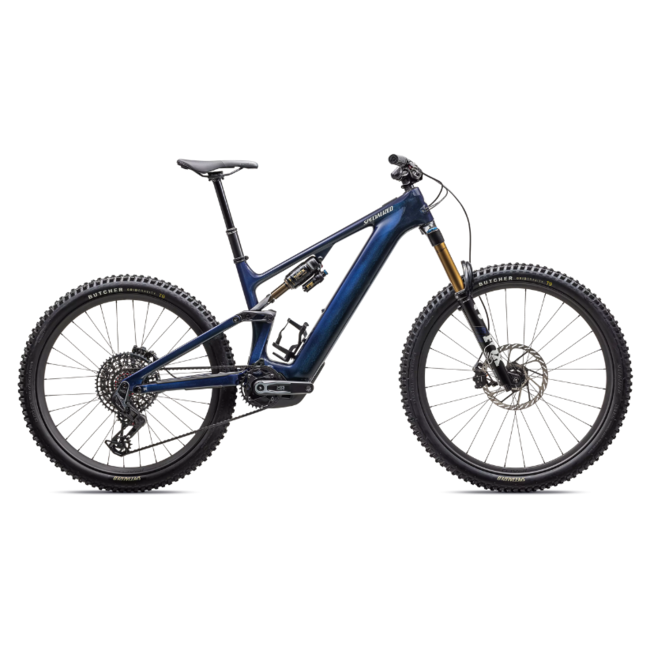

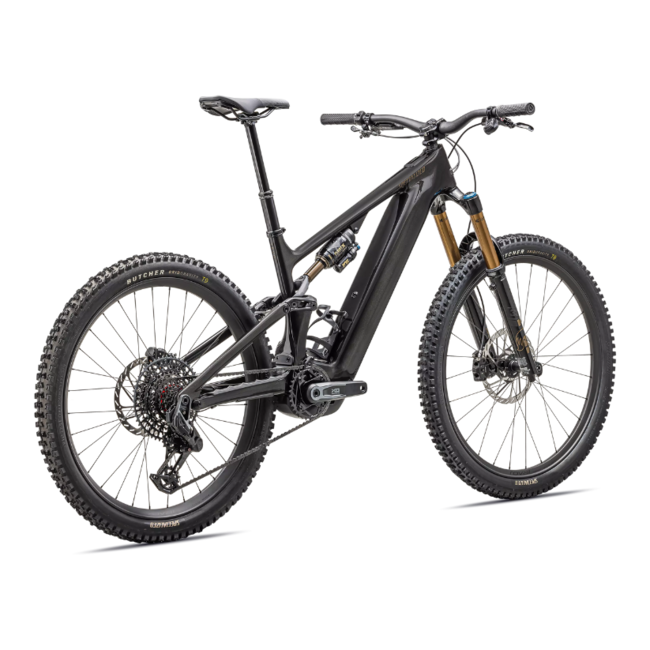

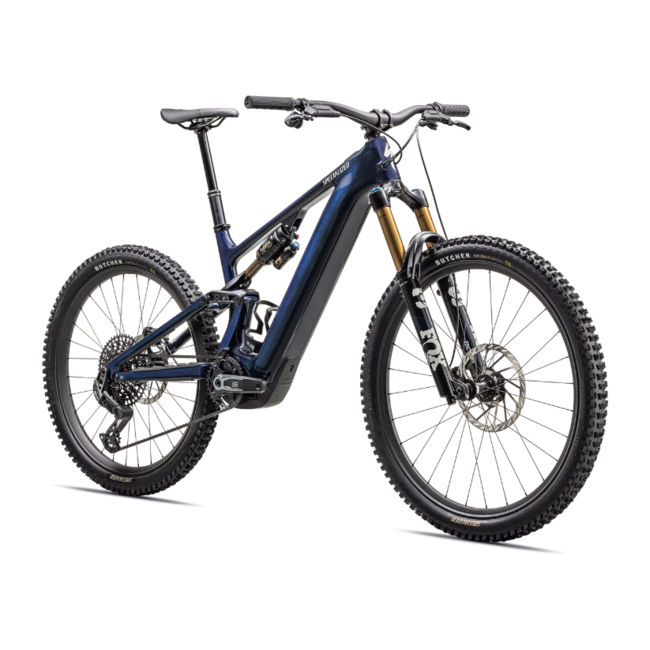

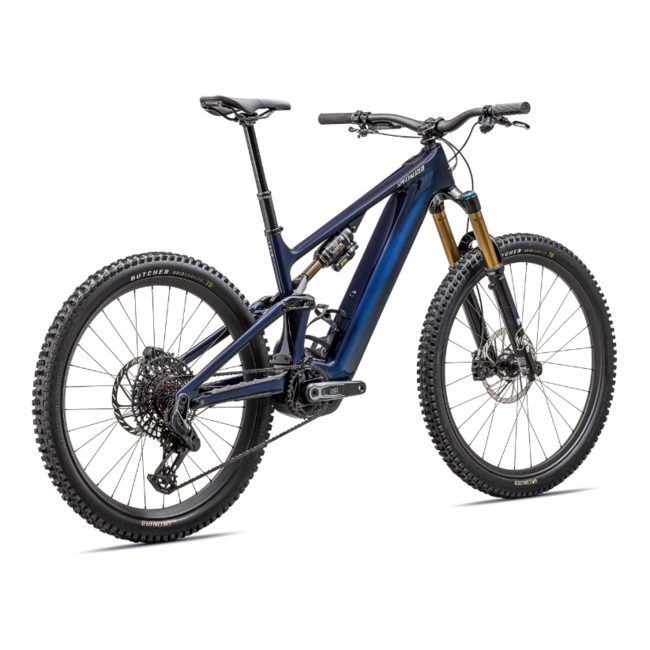

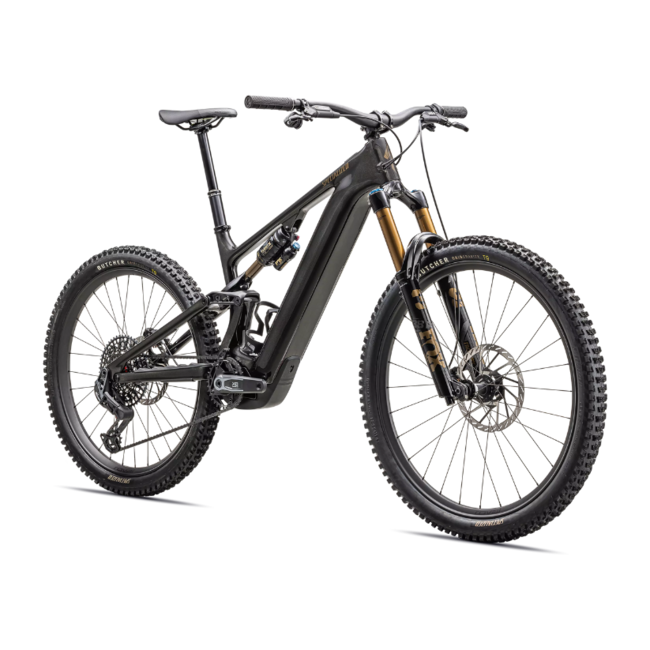

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
TECHNICAL SPECIFICATIONS
E-bike
- UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
- Motor: All New Specialized 3.1 Motor, 101Nm torque, 666W power
- Charger: Specialized 4amp charger
- Battery: 840wh battery
Frameset
- Seat Binder: Alloy, 38.6mm
- Frame: All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Suspension
- Fork: FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
- Rear Shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Brakes
- Front Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
- Rear Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
- Chainrings: SRAM 34T T-Type chainring, 104 BCD, steel
- Shift Levers: SRAM AXS POD Controller
- Chain: SRAM X0
- Rear Derailleur: SRAM X0 Eagle Transmission
- Crankset: SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm
- Cassette: SRAM XO 1295, 12 speed, 10-52
Wheels & tires
- Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
- Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Inner Tubes: Standard, Presta valve
- Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h
- Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h
Cockpit
- SeatPost: Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
- Saddle: Bridge Mimic Expert, Hollow Ti rails
- Grips: Deity Lockjaw grips
- Handlebars: RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
- Stem: Industry 9 Mountain stem, 35mm clamp, 40mm length
Accessories
- SWAT: SWAT internal downtube storage
Product details
- Product ID: 218702
- Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight: 23.94kg (52 lb, 12.5 oz)
- Weight Size: S4
