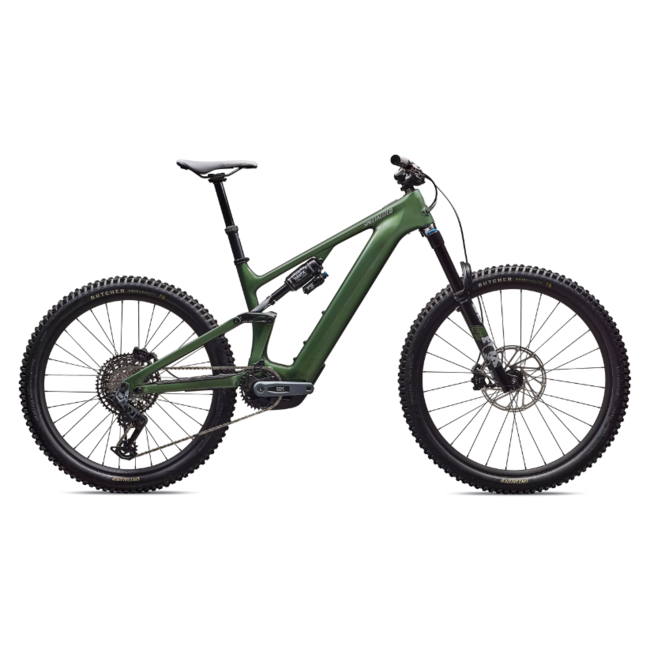

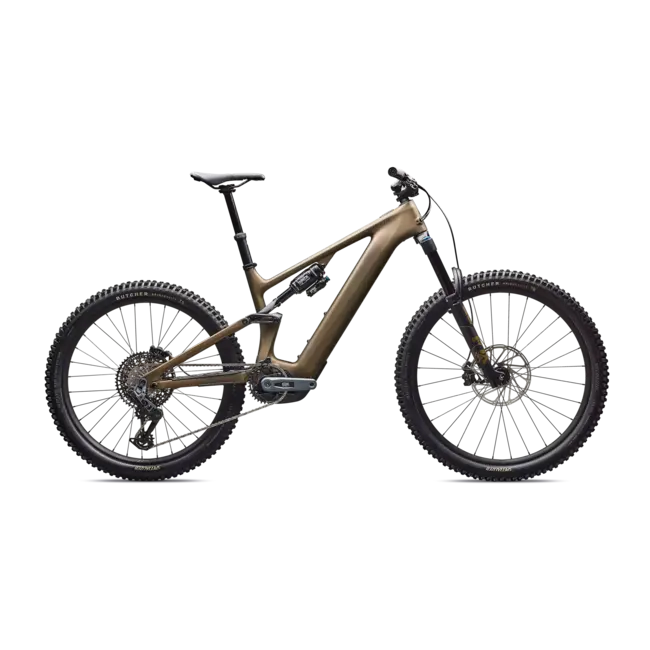

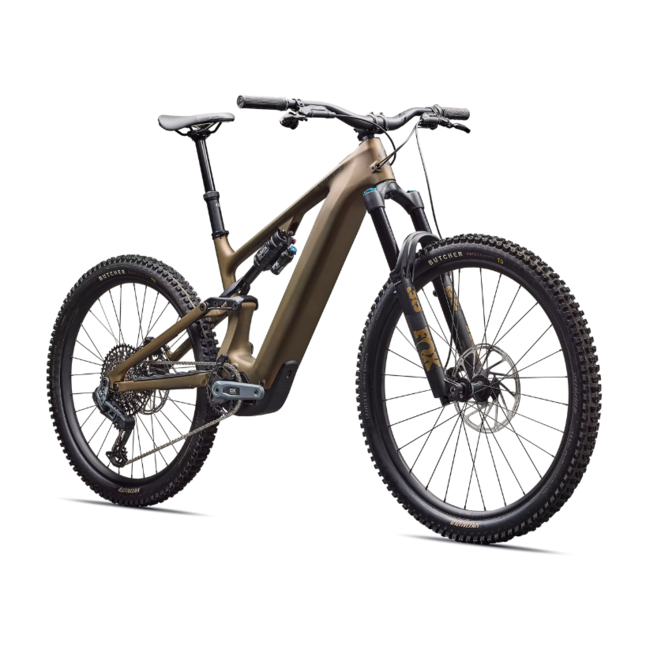

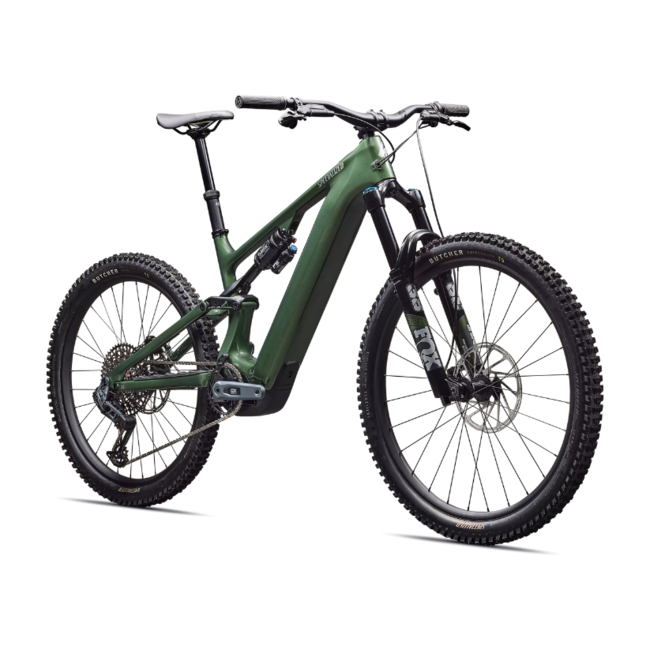

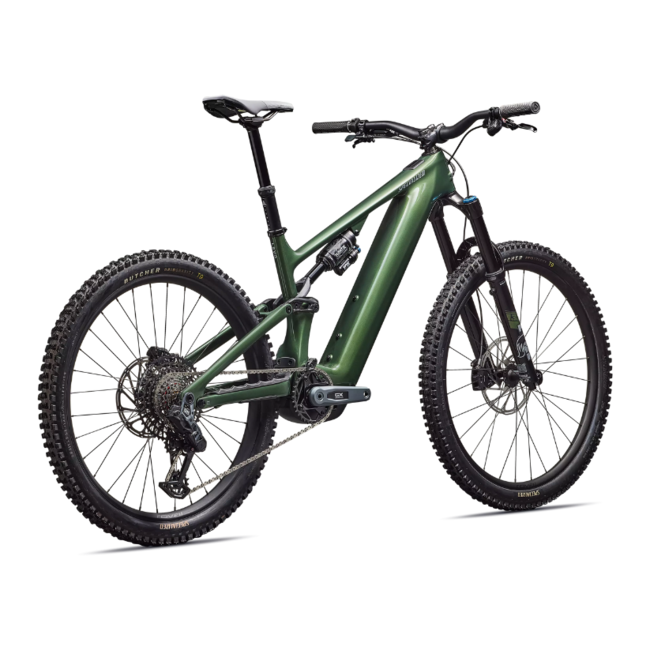

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
TECHNICAL SPECIFICATIONS
E-bike
- UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
- Motor: All New Specialized 3.1 Motor, 101Nm torque, 666W power
- Charger: Specialized 4amp charger
- Battery: 840wh battery
Frameset
- Seat Binder: Alloy, 38.6mm
- Frame: All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Suspension
- Fork: FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel
- Rear Shock: FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment
Brakes
- Front Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor
- Rear Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
- Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers: SRAM AXS POD Controller
- Crankset: SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
- Rear Derailleur: SRAM GX Eagle Transmission Derailleur
- Chain: SRAM GX Eagle Transmission Flattop Chain
- Cassette: SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Wheels & tires
- Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
- Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Front Wheel: Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
- Rear Wheel: Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
- Inner Tubes: Standard, Presta valve
Cockpit
- Stem: Alloy Trail Stem, 35mm bar bore
- Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 780mm, S3-S5: 800mm
- Grips: Deity Lockjaw grips
- SeatPost: PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm
- Saddle: Bridge Comp, Hollow Cr-mo rails
Accessories
- SWAT: SWAT internal downtube storage
Product details
- Product ID: 218704
- Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight: 24.41 kg (53 lb, 13.0 oz)
- Weight Size: S4
