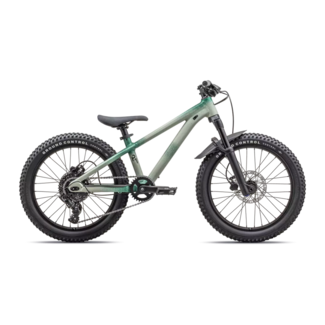

The all-new P.1 Trail gives young riders a jumping-off point to life on bikes. The lightweight but tough A1 Premium Aluminum frame is designed to take all the hits and keep rolling. The P.1 Trail delivers a simple, high-quality platform that's versatile and packs in category-first features to set them up for limitless progression.
DURABLE CONSTRUCTION: Like the rest of our P.Series line, P.1 Trail starts with our durable, lightweight A1 Premium Aluminum frame that stands up to the use that new and progressing riders put their bikes through.
EXPLORE MORE TERRAIN: The P.1 Trail is built to handle more than just the streets and parks. Complete with a 1x9 drivetrain, an 80mm travel fork, and trail-capable Specialized 2.35” Ground Control tires, the P.1 Trail can adapt to more trails and boost your young one’s ability to explore.
PINT-SIZED PUNCH: Sized and spec’d for smaller riders, P.1 Trail comes with mini riser bars with an outside diameter of only 19mm, providing a comfortable grip for smaller hands, and a host of other scaled specs to tailor the experience for riders.
- Fully-butted A1 Premium Aluminum frame with internal routing and sliding dropouts
- Dropper post compatible
- 1x9 microSHIFT Advent drivetrain with clutch
- 20”x2.35” Specialized Ground Control tires
- 80mm tapered Manitou JUNIT Comp suspension fork
- TEKTRO Jr. short reach hydraulic brakes with 160mm rotors
- Smaller diameter bars for smaller hands
-
TECHNICAL SPECIFICATIONS
-
Frameset
- Seat Binder: Quick Release, 34.9mm ID Clamp
- Frame: Specialized A1 Premium Aluminum, 20" Compatible, fully butted tubing, tapered head tube, BSA threaded 73mm BB shell, 12x148 thru-axle sliding dropouts, Single speed or geared compatibile, internal cable routing, 30.9mm seat tube, dropper post compatible
Suspension
- Fork: Hayes Manitou Junit Comp 20", 80Mm Travel, Tapered Alloy Steer Tube, 15Mm Thru Axle, 40Mm Offset, Post Disc Mount, W/ Fender
Brakes
- Front Brake: Tektro HD-J285, Short Reach Lever, 160Mm Rotor
- Rear Brake: Tektro HD-J285, Short Reach Lever, 160Mm Rotor
Drivetrain
- Chainrings: 30T
- Cassette: microSHIFT, CS-H094, 11T-38T, 9 speed HG freehub
- Crankset: Specialized P.Series, Forged single speed, 51.5mm CL, 115mm length
- Rear Derailleur: microSHIFT Advent RD-M6195S, Super Short Cage With Clutch 1X9 Speed
- Chain: KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
- Shift Levers: microSHIFT Advent SL-M6190, short reach light action trigger+D48 9 speed
- Bottom Bracket: Square Taper, 73mm Shell Width, 124.5mm Spindle Width
Wheels & tires
- Rear Hub: Alloy, 6-Bolt, 28H, 12x148 Boost, 11-speed compatiable
- Front Hub: Alloy, 6-Bolt, 28H, 15x110 Boost
- Front Tire: Specialized Ground Control Control, 20 x 2.35
- Rear Tire: Specialized Ground Control Control, 20 x 2.35
- Inner Tubes: 20" Inner Tube, SV
- Rims: Specialized P.Series, 20", 28h, 26mm internal width, Disc Brake Only
- Spokes: Stainless, 14g
Cockpit
- Handlebars: Mini Rise, Alloy Double Butted, 6-degree Backsweep, 600mm Width, 31.8mm , 19mm Bar End Diameter
- Saddle: Specialized P.series, Steel Rails
- Grips: Specialized Trail Grips, 19mm bar end diameter, lock-on
- SeatPost: Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
- Stem: 3D-forged alloy, 31.8mm, 6-degree rise
Accessories
- Pedals: Specialized Platform
Product details
- Product ID: 224175
Weight
- Weight Size: One Size
- Weight: 10.89kg (24 lb, .1 oz)
GEOMETRY
| Crank Length |
115 |
| Handlebar Width |
600 |
| Stem Length |
35 |
| Saddle Width |
110 |
| Seatpost Length |
250 |
| Stack |
429 |
| Reach |
310 |
| Head-Tube Length |
90 |
| Head-Tube Angle |
68.5 |
| B-B Height |
259 |
| B-B Drop |
5 |
| Trail |
61 |
| Fork Length (full) |
380 |
| Fork Rake/Offset |
40 |
| Front-Center |
520 |
| Chain-Stay Length |
320 |
| Wheelbase |
840 |
| Top-Tube Length (horizontal) |
449 |
| Bike Stand-Over Height |
561 |
| Seat-Tube Length |
265 |
| Seat-Tube Angle |
72 |
| Wheel Size |
20 |
