FEATURES

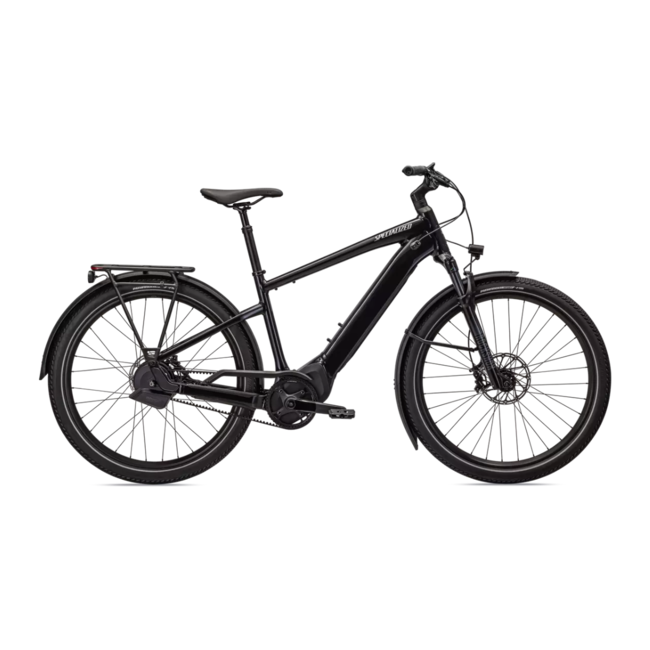

Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.
- Turbo Full Power 2.2 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
- MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
- The enviolo AUTOMATiQ Internal Gear Hub (IGH) stepless shifting technology automatically shifts gears based on a rider’s pedal pace, taking changes in the surroundings into account. By selecting a preferred cadence or pedal pace, it allows riders to “set it and forget it”, adding an extra layer of safety and comfort for riders.
- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
- Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
- Garmin Radar - An integrated Garmin Radar sensor lets you know when traffic is coming up behind you. Garmin’s Radar technology can detect cars up to 140 meters away. MasterMind will give riders a visual, audible, and haptic alert of an approaching vehicle’s relative distance and rate of speed.
- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
BIKE SPECS
E-bike
- Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
- UI/Remote: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
- Motor: Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
- Battery: Specialized U2-710, alloy casing, state of charge display, 710Wh
Frameset
- Frame: E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Suspension
- Fork: Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts
Brakes
- Rear Brake: SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm
- Front Brake: SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm
Drivetrain
- Crankset: Custom alloy forged crankarms
- Chaincase: Custom chaincover
- Chain: Gates Carbon Drive CDX 122t belt, black
- Cassette: Gates Carbon Drive CDX 22t sprocket, silver
- Chainrings: Gates Carbon Drive CDX 50T front sprocket, black
- Internal Gear Hub: enviolo AUTOMATiQ Pro shifting interface
Wheels & tires
- Rims: 650b disc, double-wall alloy, pinned, 32h
- Spokes: DT Swiss Industry
- Front Tire: Pathfinder Sport Reflect, 650Bx2.3
- Rear Tire: Pathfinder Sport Reflect, 650Bx2.3
- Front Hub: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Inner Tubes: Standard 40mm SV 650Bx1.75-2.4
- Rear Hub: enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h
Cockpit
- Saddle: Bridge Sport, Steel rails, 155mm
- Grips: Ergon, GA30
- Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
- Handlebars: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
- SeatPost: Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Accessories
- Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
- Radar: Integrated Garmin Radar, with custom information displayed directly on the Mastermind TCD
- Headlight: Lezyne Ebike Power E115, 310 Lumen, 12V
- Taillight: Spanninga Commuter Glow XE, 12V
- Pedals: Specialized Commuter w/ grip tape & reflectors
- Bell: Specialized brass bell
- Kickstand: Specialized kickstand, 40mm mount
- Rack: Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
- Bike Lock: Turbo System Lock
Weight
- Weight: 27.44kg (60 lb, 7.9 oz)
- Weight Size: MD
GEOMETRY
|
S |
M |
L |
XL |
BB Drop |
70 |
70 |
70 |
70 |
BB Height |
285 |
285 |
285 |
285 |
Bike Standover Height |
735 |
771 |
771 |
805 |
Chainstay Length |
470 |
470 |
470 |
470 |
Crank Length |
170mm |
170mm |
170mm |
170mm |
Fork Length (full) |
480 |
480 |
480 |
480 |
Fork Rake/Offset |
44 |
44 |
44 |
44 |
Front Center |
699 |
724 |
750 |
777 |
Handlebar Width |
680mm |
680mm |
680mm |
680mm |
Headtube Angle |
68 |
68 |
68 |
68 |
Headtube Length |
135 |
150 |
165 |
190 |
Reach |
423 |
444 |
464 |
481 |
Saddle Width |
155mm |
155mm |
155mm |
155mm |
Seat Tube Angle (Virtual) |
75.5 |
75 |
74.5 |
74 |
Seat Tube Length |
400 |
450 |
460 |
500 |
Seatpost Length |
350mm |
350mm |
400mm |
400mm |
Stack |
625 |
639 |
652 |
676 |
Stem Length |
60mm |
60mm |
75mm |
75mm |
Toptube Length (horizontal) |
585 |
615 |
645 |
675 |
Trail |
96 |
96 |
96 |
96 |
Wheelbase |
1160 |
1186 |
1212 |
1239 |
