FEATURES
The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
Ready to super-charge your stoke? The Levo Comp Carbon will take your trail riding to the next level with SRAM’s expansive GX Eagle 12-speed drivetrain, full FOX suspension, and a lightweight, durable alloy wheelset.
- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
- The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

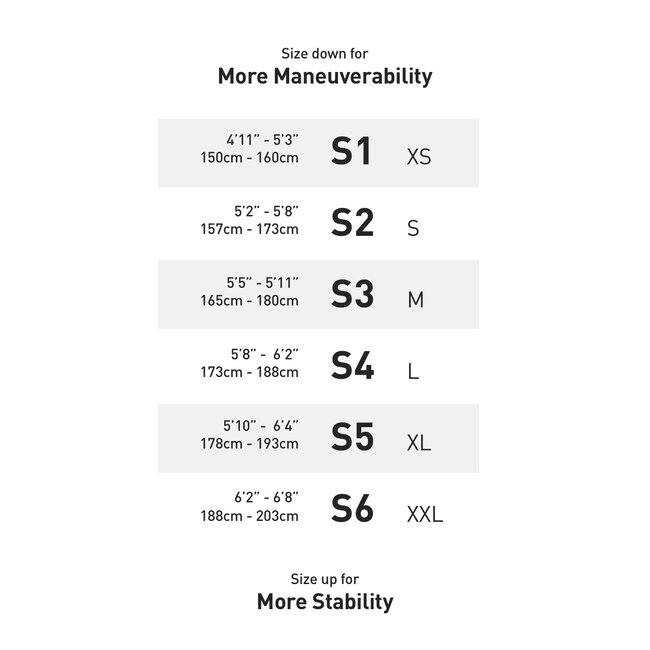

- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
BIKE SPECS
Frame: FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Rear Shock: S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5 x 210mm, S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Fork: FOX FLOAT 36 RHYTHM 29, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, 1.5" tapered steerer, 160mm travel
Stem: Alloy Trail Stem, 35mm bar bore
Grips: Specialized Trail Grips
Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
Front Brake: SRAM Code RS, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
Rear Brake: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Rear Derailleur: SRAM GX Eagle, 12-speed
Shift Levers: SRAM GX, trigger, 12-speed
Cassette: Sram XG-1275, 12-speed, 10-52t
Chain: SRAM NX Eagle, 12-speed
Crankset: Praxis forged M30, custom offset, 160mm
Chainrings: SRAM X-Sync Eagle, 104 BCD, 32T, steel
Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Rear Hub: Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Spokes: DT Swiss Industry
Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Inner Tubes: Standard, Presta Valve
Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
Seat Binder: Alloy, 38.6mm
Motor: Specialized Turbo Full Power System 2.2 Motor
UI/Remote: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Battery: Specialized M3-700, Integrated battery, 700Wh
Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness: Custom Specialized wiring harness
SWAT: SWAT CC steerer tube integrated tool with chain tool and link
GEOMETRY
|
S1 |
S2 |
S3 |
S4 |
S5 |
S6 |
BB Drop |
25 |
27 |
27 |
27 |
27 |
27 |
BB Height |
352 |
350 |
350 |
350 |
350 |
350 |
Bike Standover Height |
752 |
776 |
783 |
787 |
788 |
790 |
Chainstay Length |
442 |
442 |
442 |
442 |
442 |
442 |
Crank Length |
160mm |
160mm |
160mm |
160mm |
160mm |
160mm |
Fork Length (full) |
557 |
567 |
567 |
567 |
567 |
567 |
Fork Rake/Offset |
44 |
44 |
44 |
44 |
44 |
44 |
Front Center |
738 |
760 |
784 |
814 |
843 |
878 |
Handlebar Width |
780mm |
780mm |
780mm |
780mm |
780mm |
780mm |
Headtube Angle |
64.5 |
64.5 |
64.5 |
64.5 |
64.5 |
64.5 |
Headtube Length |
105 |
105 |
115 |
125 |
135 |
145 |
Max Seatpost Insertion |
210 |
220 |
240 |
255 |
275 |
295 |
Min Seatpost Insertion |
80 |
80 |
80 |
80 |
80 |
80 |
Reach |
412 |
432 |
452 |
477 |
502 |
532 |
Saddle Width |
155mm |
155mm |
143mm |
143mm |
143mm |
143mm |
Seat Tube Angle |
78 |
77.2 |
76.7 |
76.2 |
76.2 |
76.2 |
Seat Tube Length |
380 |
390 |
405 |
425 |
445 |
465 |
Seatpost Length |
100mm |
125mm |
150mm |
170mm |
170mm |
190mm |
Stack |
605 |
617 |
626 |
635 |
644 |
653 |
Stem Length |
40mm |
40mm |
50mm |
50mm |
50mm |
50mm |
Trail |
130 |
130 |
130 |
130 |
130 |
130 |
Wheelbase |
1179 |
1200 |
1225 |
1255 |
1284 |
1318 |
